J1939. Application Layer - Generator Sets. Application - Configurable Messaging. While other higher layer protocols based on Controller Area Network CAN do not support dynamic node address assignments per default the SAE J1939 standard provides this ingeniously designed feature to uniquely identify ECUs and their primary function.

J1939 is a multimaster system with decentralized. The HD67599 is a EtherNetIP J1939 Converter and it allows you to connect some J1939 devices like common engines based on SAE J1939 CAT Cummins Iveco with an EtherNeIP net for example an Allen-Bradley PLC an OMRON PLC in order to exchange the informations between the. If a conflict arises between modules there are several.

SAE J1939 Starter Kit And Network Simulator. EtherNetIP J1939 - Converter. Fix bit rate 250 kbps.

SAE J1939 uses CAN Controller Area Network ISO11998 as physical layer. SAE J1939 is a standardized protocol that operates in CAN Controller Area Network bus networks. In this application note the properties of SAE J1939 should be described in brief.

An SAE J1939 CAN Network consists of multiple Electronic Control Units ECUs. These addresses are defined in the SAE J1939 specification. It is a standard maintained by the Society of Automotive Engineers SAE The standard defines how information is transferred across a network to allow ECUs ie.

Each ECU can have one or more Controller Applications CAs. There are 4 specifications defined by SAE J1939. SAE J1939 protocol is based on CAN ISO 11998-1 and ISO 11998-2.

J-1939 used in commercial vehicle for communication. Computers to communicate information. J1939 defines some other features relaying gateway fast packet transport.

It is a recommended. Reduced Physical Layer 250K bitssec Un-Shielded Twisted Pair UTP J1939-21. SAE J193911 defines a high speed CAN bus as per ISO 11898.

In parallel OEMs will increasingly shift from Classical CAN to CAN FD as part of the transition to J1939 with flexible data-rateIn turn this will increase the need for J1939 FD data loggers. J1939 is a set of SAE standards that is built on top of CAN Controller Area Network. Introduction to J1939 2 Application Note AN-ION-1-3100 10 Overview SAE J1939 is used in the commercial vehicle area for communication in the commercial vehicle.

This address is either acquired within the address claiming procedure or set to a fixed value. Transfer rate is 250 kbps and maximum 30 nodes can be connected on the bus. SAE J1939 is a very easy protocol to use but there is a lack of information about SAE J1939 due to the cost of the protocol document available how to shape a CAN-bus message according to SAE J1939 protocol standard.

Part of the standard defines how to deconstruct transfer and reassemble CAN messages larger than 8 bytes. In-kernel code for these would not contribute to protocol stability. SAE J1939 is a communication protocol based on CAN for real-time data exchange between control units in the area of commercial vehicles.

With the rise of heavy-duty telematics J1939 will increasingly play a role in the market for connected vehiclesIn turn this will increase the need for secure J1939 IoT loggers. Our JCOMJ1939 Starter Kit And Network Simulator is designed to allow the experienced engineer as well as the beginner to experiment with SAE J1939 data communication without the need of connecting to a real-world J1939 network ie. The J1939 sockets operate on CAN network devices see SocketCAN.

Can transmit up to 1765 bytes of data using transport protocol TP. J1939 uses can as a physical layer. Each CA has its own unique Address on the bus.

Application Layer - Diagnostics. 1First the drivetrain J1939 data link J1939 body builder data link and J1939 engine data link are three completely separate data links. Vehicle speed Think of J1939 as a software specification that rides on.

As a general rule after power-up a J1939 module will try to claim its preferred address. It may sound obvious but in order to establish a network you need at least two nodes and that. Aceinna J1939 Protocol AJP is a communication mechanism used for resolution of the identiﬁcation of CAN nodes conﬁguration and data exchange based upon SAE J1939 and the related standards.

Business Model for J1939 Stack Solution. This enables you to integrate the J1939 stack across multiple projects andor product lines. SAE J1939 includes two different approaches for transferring safety-critical data.

J1939 stack is an embedded software stack with layered architecture compliant with SAE J1939 standard. In this business model you as the customer own the IP rights and the source code of the software stack. Support both peer to peer broadcast communication.

This example shows how to implement this using LabVIEW and NI-CAN products. Any J1939 user space library operating on CAN raw sockets will still operate. We offer this industry-wide proven and stable SAE J1939 software solution under a one-time licensing fee model.

The other involves standardized parameter groups specified by SAE J1939 featuring a. J1939 Address Configuration Most CAs on a J1939 network will have a preferred address that will be used based on the CAs primary function. This serie of products allows to integrate a EtherNetIP network with a J1939 net.

It is widely used in industrial diesel engines designed for the heavy-duty vehicle industry including on-highway trucks off-highway equipment agricultural equipment construction equipment and other vehicles. Therefore these parts are left to user space. The J1939 standard calls this process Transport Protocol.

Network Management under J1939 is primarily represented by the Address Claiming Process. One is the SAE J1939-76 standard which describes a general process for protecting a desired parameter group. It is a request and reply protocol and communicated within the boundaries of a single CAN networknever routed internetwork nodes.

Our SAE J1939 Protocol Stack for. Connect and Monitor J1939 Engines. For specific examples of modules on each different data link Click Here 2The different J1939 data links work the same way but the wiring for them is not connected.

It originates from the international Society of Automotive Engineers SAE and operates on the physical layer with high-speed CAN per ISO 11898.

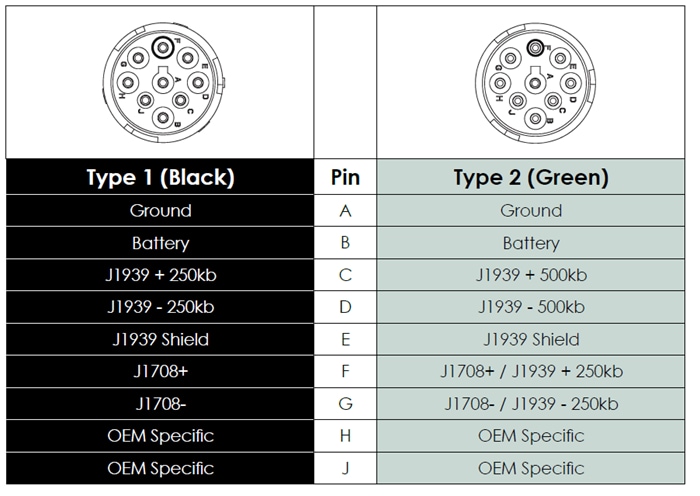

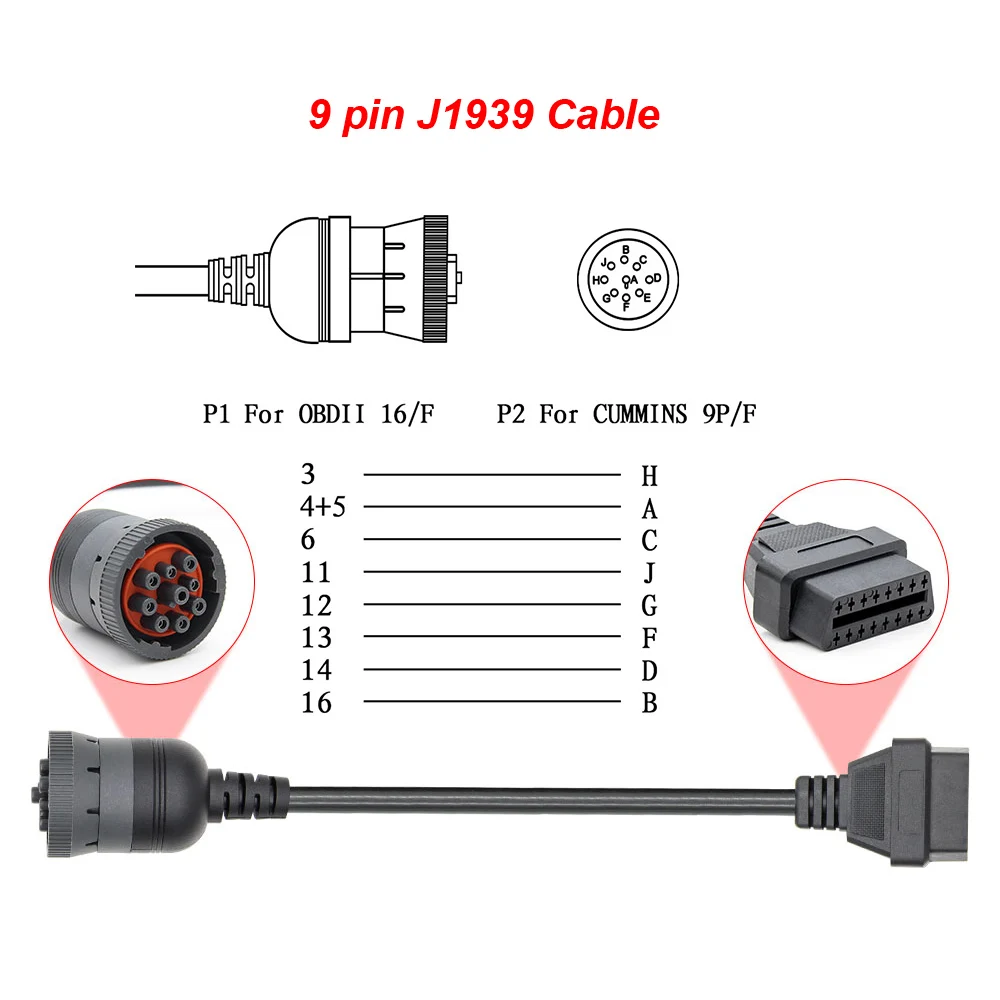

Hot Sale Obd2 Truck Diagnostic Tool 16 Pin Cable J1708 J1939 Connector Obd To Obd2 6 Pin 9 Pin Truck Cable For Cummins Truck Car Diagnostic Cables Connectors Aliexpress
